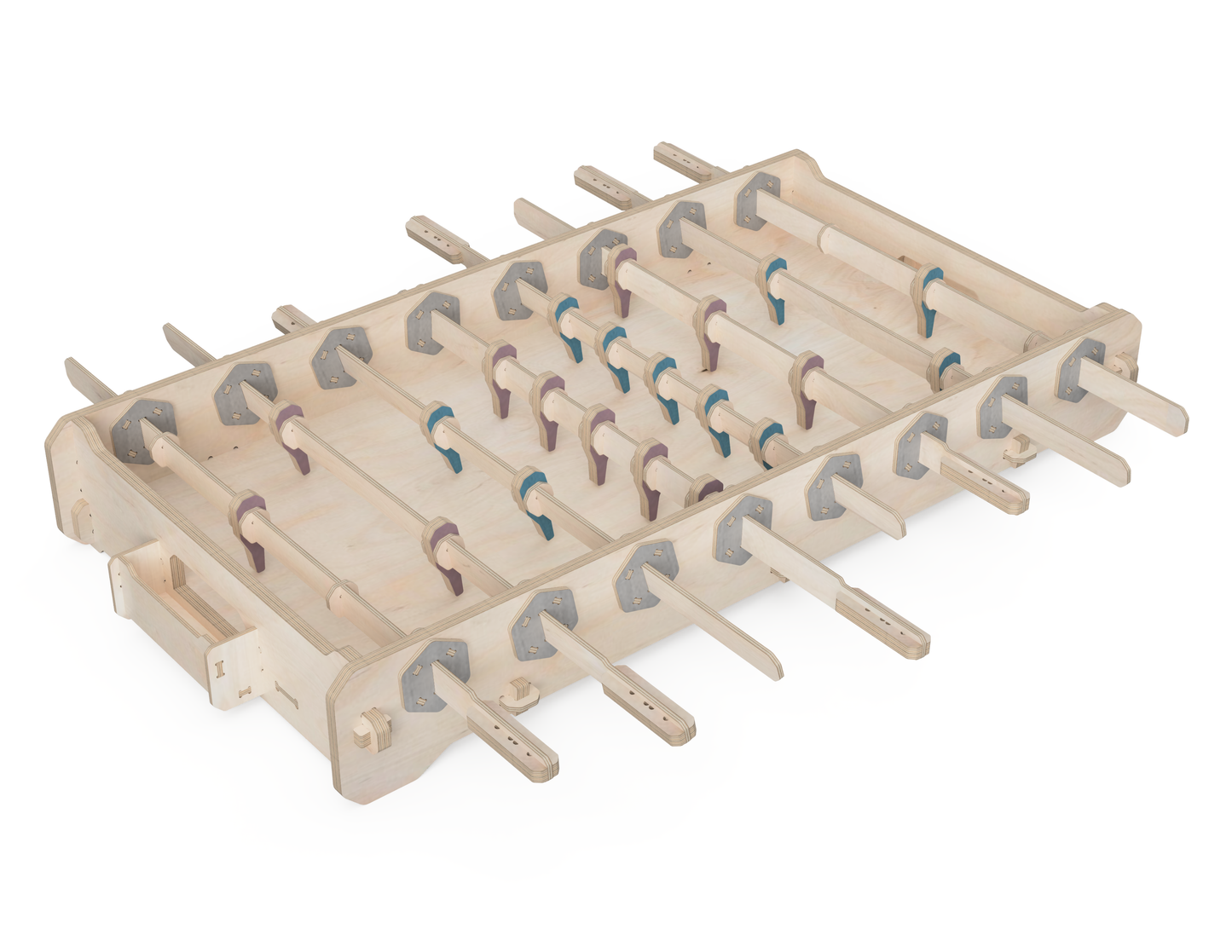

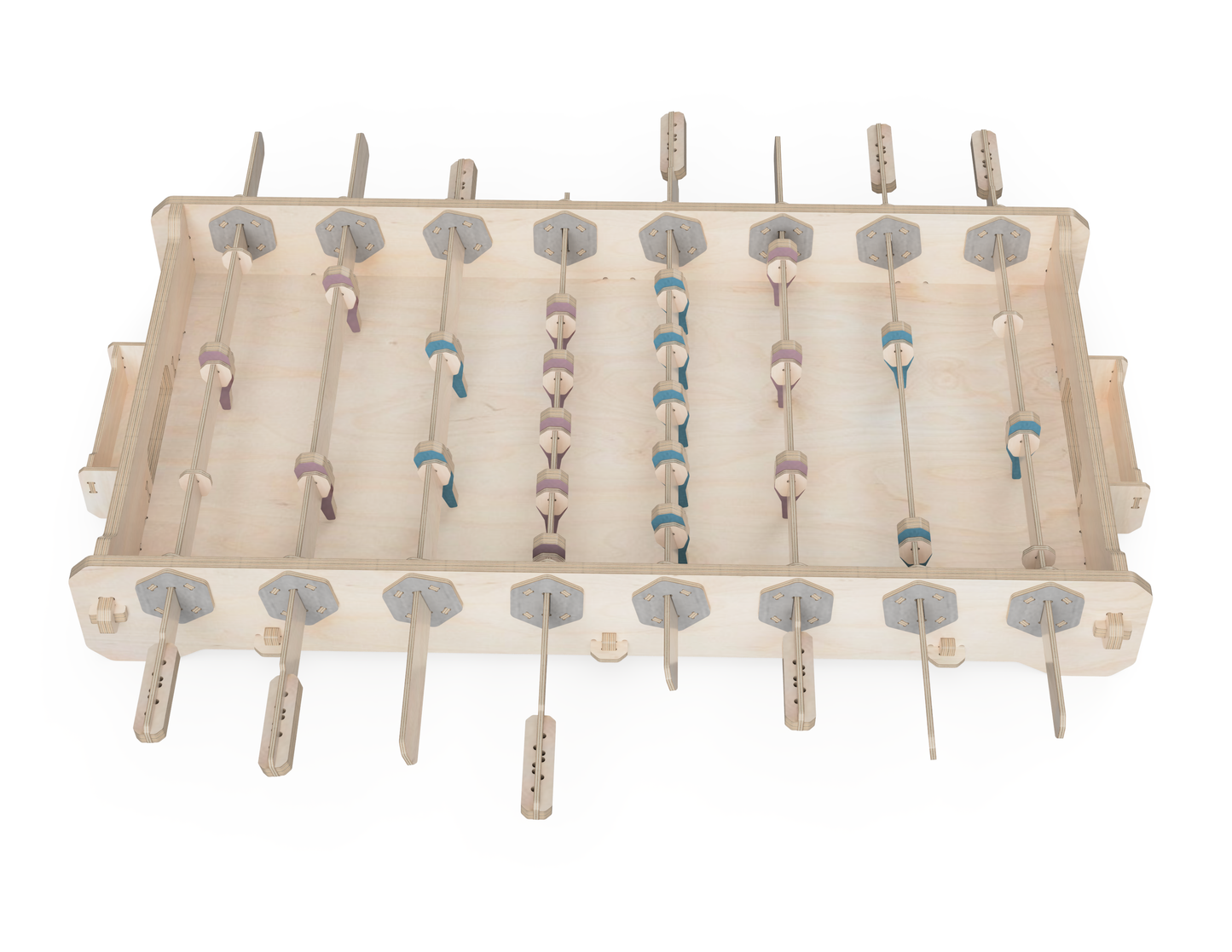

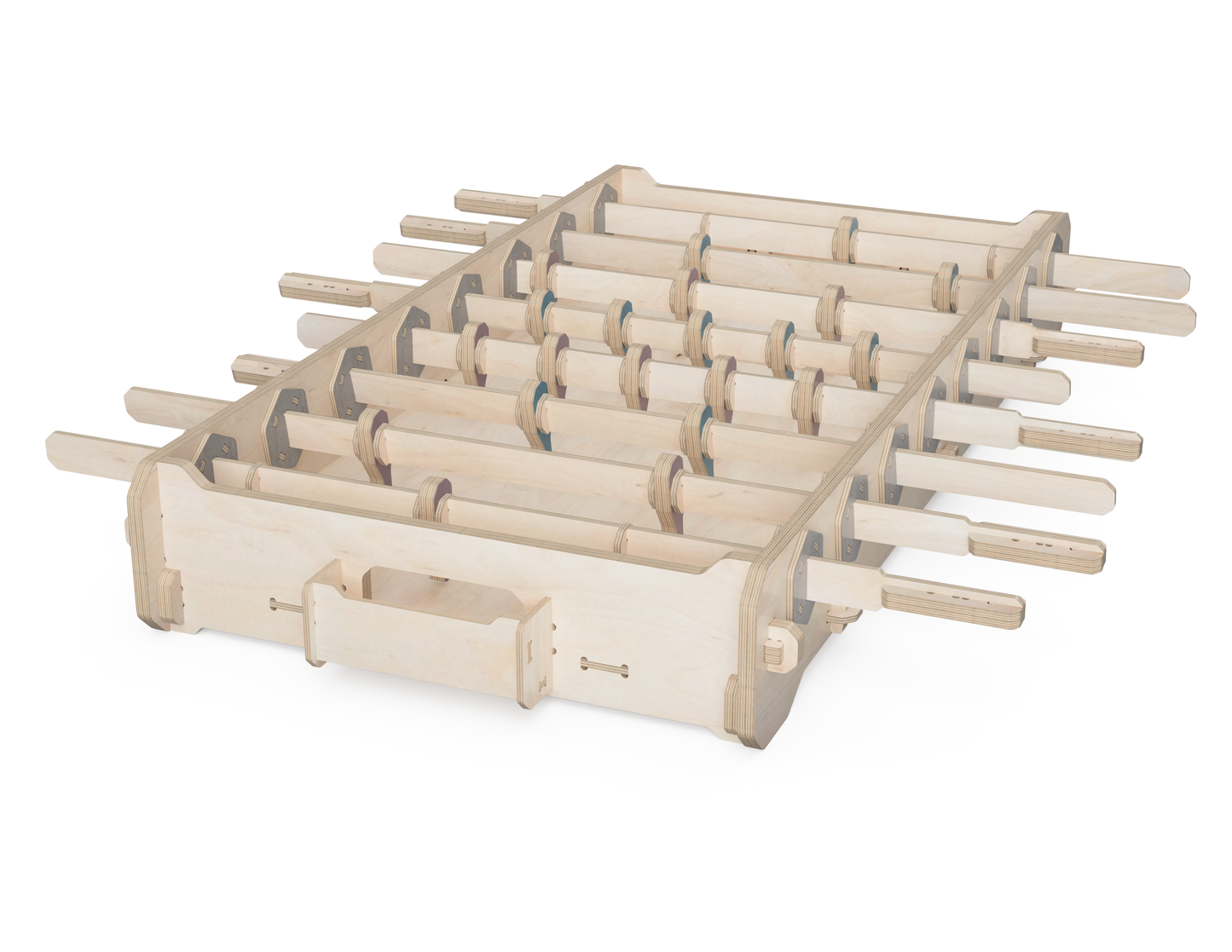

Tabletop Foosball DXF file

 The design can be cut on 900 x 1200 (3 x 4 ft) CNC router and bigger.

After completing the order, you will receive DXF files with component layout adjusted to different CNC sizes:

900 x 1200 (3 x 4 ft)

1200 x 1200 (4 x 4 ft)

1220 x 2440 (4 x 8 ft)

*The files are adjusted to fit both metric and imperial standards for materials and tools

Dimensions:

170 mm (height) x 1190 mm (length) x 1010 mm (width)

6-11/16 (height) x 46-27/32 (length) x 39-49/64 (width)

Required materials:

For 900 x 1200 (3 x 4 ft) CNC

• 2 sheets of 900 x 1200 x 6 mm (35-7/16 x 47-¼ x 1/4 inches) plywood
• 1 sheet of 900 x 1200 x 15 mm (35-7/16 x 47-¼ x 5/8 inches) plywood
• 3 mm (1/8 inch) router bit for dogbones
• 6 mm (1/4 inch) router bit for dogbones

For 1200 x 1200 (4 x 4 ft) CNC and bigger

• 1 sheet of 1200 x 1200 x 6 mm (47-¼ x 47-¼ x 1/4 inches) plywood
• 1 sheet of 900 x 450 x 6 mm (35-7/16 x 18 x 1/4 inches) plywood
• 1 sheet of 900 x 1200 x 15 mm (35-7/16 x 47-¼ x 5/8 inches) plywood
• 3 mm (1/8 inch) router bit for dogbones
• 6 mm (1/4 inch) router bit for dogbones

For 1220 x 2440 (4 x 8 ft) CNC and bigger

• 1 sheet of 1220 x 1650 x 6 mm (48-1/32 x 65 x 1/4 inches) plywood
• 1 sheet of 900 x 1200 x 15 mm (35-7/16 x 47-¼ x 5/8 inches) plywood
• 3 mm (1/8 inch) router bit for dogbones
• 6 mm (1/4 inch) router bit for dogbones

Assembling time:

45 minutes

Delivery time:

30 seconds

After completing the order, you will receive the DXF design file to your email within seconds.

Updates:

Free

If your plywood sheet is thicker or thinner than expected, send the number of your purchase and the actual thickness to contact@aribabox.com. We will send you the updated DXF design file for free.

The product may differ from the representative images when cut and assembled. We hope you will enjoy your purchase from Aribabox.
